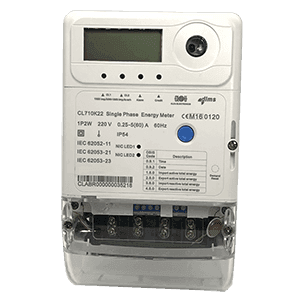

Smart Electricity 1 Phase

Smart Electricity 1 Phase

Single-Phase Smart Electricity meter provides excellent and stable accuracy and performance. CL710K22®LoRaWAN series is equipped with LoRaWAN communication module for AMI integration, so all the operations can be done remotely from the central server, including meter billing/configuration/credit purchase/alarm events upload etc. The meter supports exchangeable payment between prepayment and post-paid, and it keeps records of different tampers which can be configured to switch off the load supply when the tamper occurs.
Smart electricity refers to an advanced and automated electrical grid system that uses modern technologies like sensors, data analytics, and communication networks to optimize the generation, distribution, and consumption of electricity.

Specifications

Environment Class
M1 / E2
Relative Humidity
≥ 95%, non-condensing
Limit Operating Temperature Range
-40°C ~ + 70°C (3K7)
Specified Operating Temperature Range
-25 °C ~ + 55 °C

LoRaWAN Parameters

Channels
8 settable channels
TX Power
Up to 22 dBm
ISM Bands
AS923
LoRaWAN Class
Class A / Class C
RX Sensitivity
Down to -134 dBm
Spreading Factor
SF7 ~ SF10 (adaptive)
LBT(Listen Before Talk)
Yes

Electrical Parameters

Basic Current
5A
Nominal Voltage
120 V ~ 240 V
Starting Current
0.4‰ lb / 20 mA
Connection Wiring
1P2W LNNL (BS / LLNN (DIN) ; 1P3W L1L2 L2L1 / L1L1 L2L2
Operating Voltage
70% ~ 130% Un

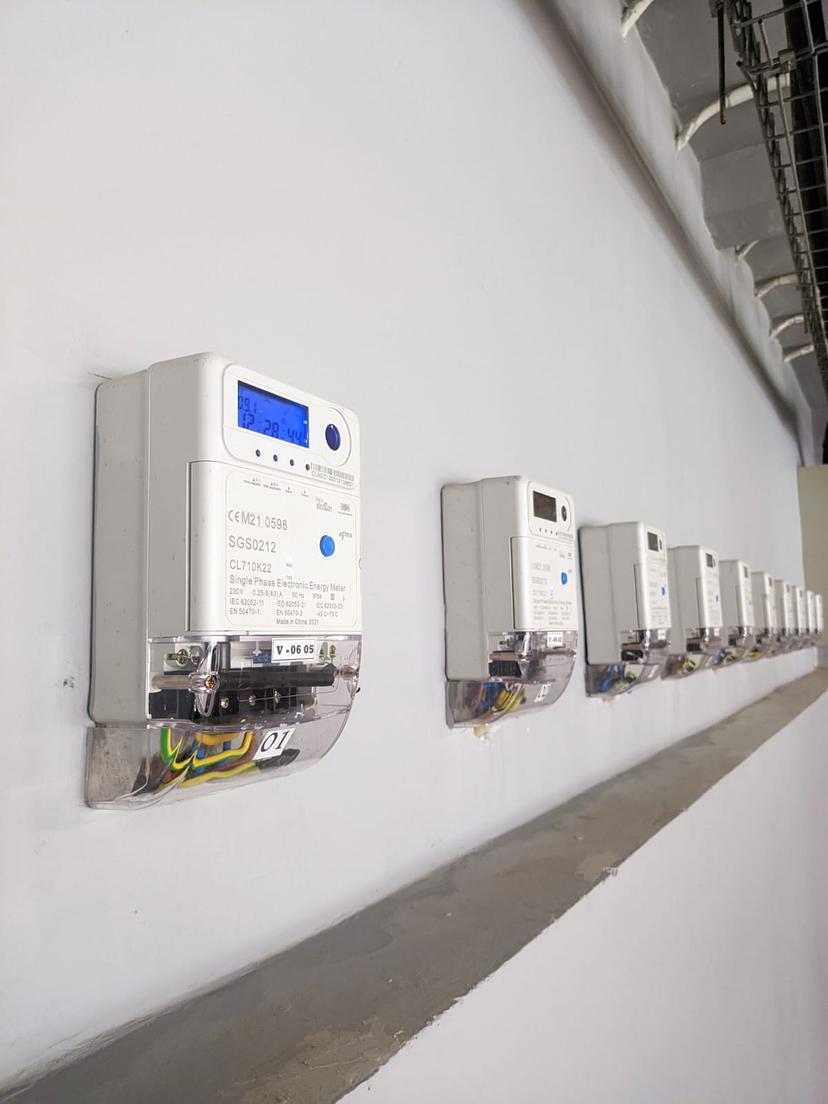

Implementations

WhatsApp Image 2023-05-17 at 17.33.42 - Copy.jpgWhatsApp Image 2023-03-27 at 17.03.11.jpgWhatsApp Image 2023-03-27 at 17.08.29 (1).jpg
Download DataSheet
