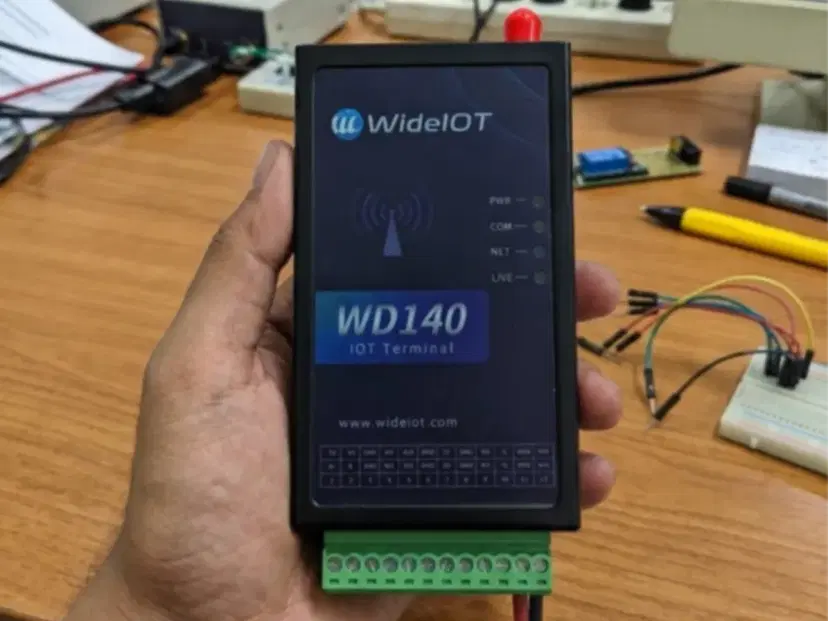

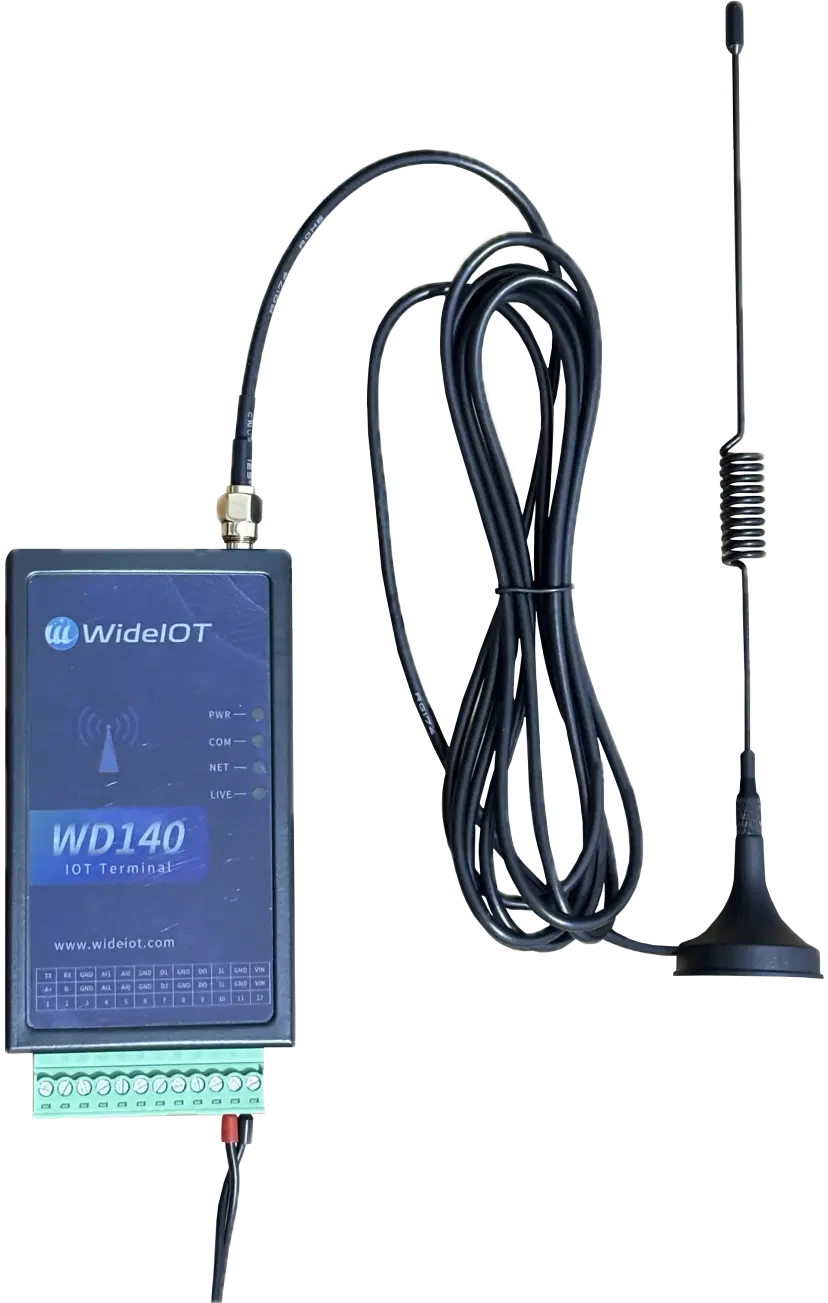

Cellular RTU RS485 (LTE Cat-1)

Monitor your equipment remotely with ease.

This cellular IoT device is designed to collect and transmit data from field equipment with minimal setup. Using LTE connectivity, it enables near real-time monitoring through configurable data intervals and operates independently from local wireless infrastructure, making it suitable for locations without Wi-Fi or where network deployment is not practical.

Built for deployment in Indonesia, the device is compatible with local cellular networks and is typically used with data SIM cards suitable for IoT deployments to ensure stable and compliant connectivity.

The device supports multiple interfaces including digital inputs, analog inputs, and RS-485 communication, making it easy to connect with meters, sensors, and other existing devices.

For continuous operation, it relies on a stable external power source to ensure consistent data transmission for monitoring applications.

Key Features:

Reliable cellular connectivity (LTE Cat-1) for wide coverage
Near real-time monitoring with configurable data intervals
Operates independently from local wireless infrastructure
Compatible with cellular networks in Indonesia, using data SIM cards suitable for IoT deployments
Supports digital, analog, and RS-485 interfaces
Designed for continuous operation with external power supply
Easy integration with existing equipment

IP30

Name: Cellular RTU RS485 (LTE Cat-1)
Brand: PT IoT Kreasi Indonesia

Specifications

MCU

32-bit Arm Cortex-M4

Mounting

Panel-mounted

Protocol

Modbus RTU

SIM Slot

1 (Mini SIM-2FF)

Dimensions

93 x 54 x 22 mm

Interfaces

RS232 / RS485 (selectable)

Protection

IP30

Analog Input

2-channel, 12-bit (0-5V, 0-10V, 0-20mA, 4-20mA)

Connectivity

LTE Cat-1, Compatible with Indonesian LTE Networks

Power Supply

DC 6V ~ 35V

Antenna Interface

1 × SMA Connector 50Ω (Center Pin : SMA Female)

Power Consumption

200 ~ 300 mA @12V

Environmental

Humidity

5% ~ 95% (non-condensing)

Storage Temperature

-40°C ~ 85°C

Operating Temperature

-20°C ~ 70°C

Interface Parameters

Serial Port

RS232 / RS485 selectable, 1200 ~ 128000 bps (default 19200)

Analog Input

2-channel, 12-bit (current & voltage selectable)

Digital Input

1-channel, 0-60V, dry/wet contact, counter supported

Digital Output

1-channel, opto-isolated transistor (<1A)

Cellular (4G) Parameters

Function

Data upload via MQTT

Uplink Rate

Up to 5 Mbps

Downlink Rate

Up to 10 Mbps

Physical Characteristics

Weight

260 g

Mounting

Panel-mounted

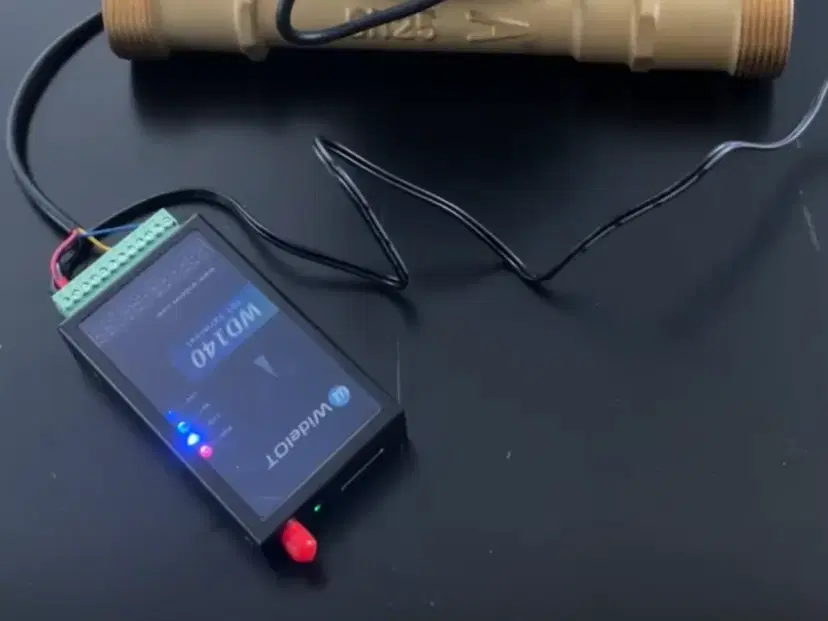

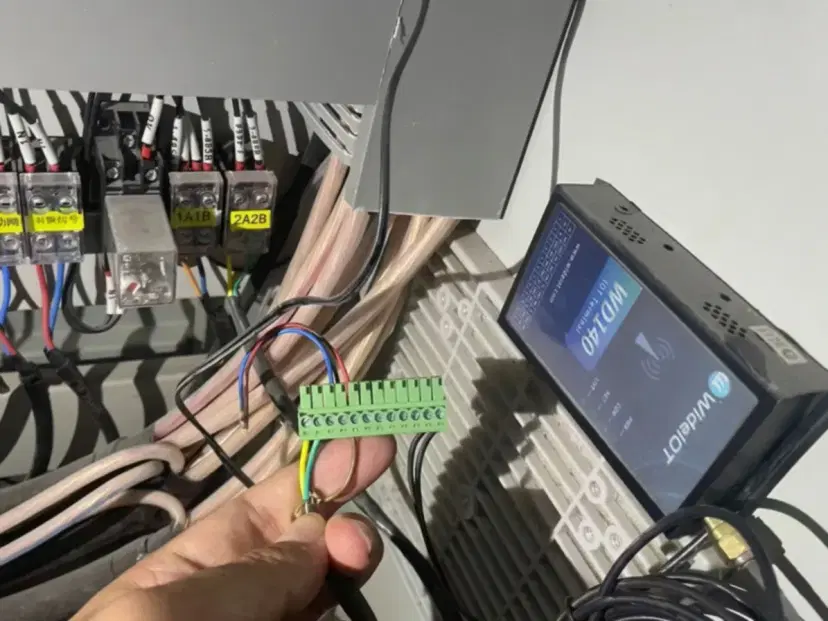

Implementations




Download DataSheet
